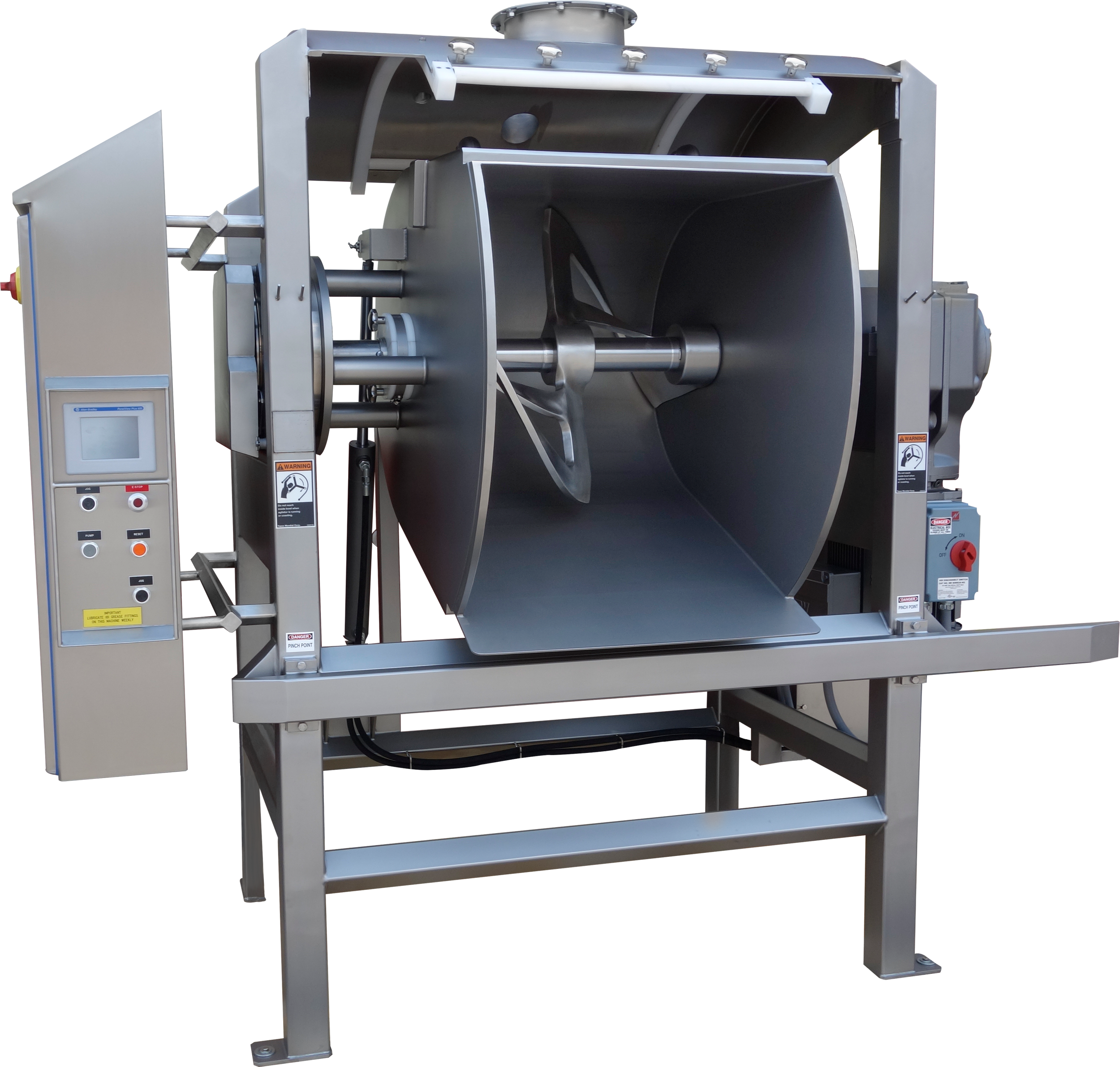

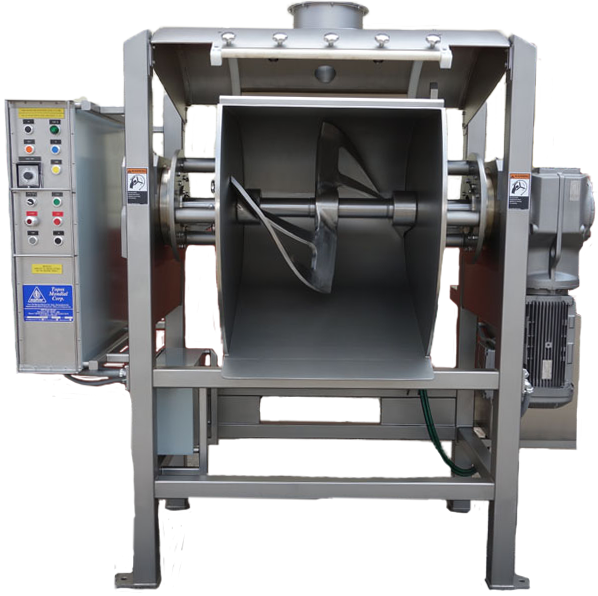

Topos Mondial, Open Frame Single Sigma Horizontal Mixer


        Feature
        Details

        Model Name
        Open Frame Single Sigma Horizontal Mixer (SSOFHM)

        Design
        Sanitary open frame, 110° overtilt horizontal bowl

        Agitator
        Single Sigma agitator for heavy dough handling

        Frame Options
        Mild steel with STEEL IT coating or full stainless steel

        Bowl Material
        Reinforced stainless steel bowl and canopy

        Control Options
        Custom controls with timers/relay logic or PLC + PanelView

        Hydraulic Tilt
        Heavy-duty Hytos hydraulic bowl tilting system

        Mixing Capacities (Examples)

          THM-03OT: 800 lbs (130 gal)

          THM-05OT: 1300 lbs (200 gal)

          THM-07OT: 2100 lbs (300 gal)

          THM-10OT: 3400 lbs (500 gal)

          *(Additional sizes available)*

        Speed Range
        7–60 rpm

        Power Range
        24–125 hp (model dependent)

        Sanitation
        110° tilt and open frame design for fast cleaning

Typical Applications

    High-Absorption Bread Dough

    Pizza Dough

    Bagel Dough
    Pretzel Dough
    English Muffins

    Tortillas
    Flatbreads

Download Brochure (PDF)

Available Options (Net Additional)

Insulated Bowl Jacket

Helps control dough temperature with stainless cover protection.

Custom Controls

Design panels from basic timers to advanced PLC touch screens.

Front Pouring Lips

Fabricated lips for precise, clean dough transfer.

Ingredient Feed Ports

Slide gate or butterfly dry and liquid feed ports.

VFD Drive Controls

Variable frequency drive for soft starts and speed flexibility.
