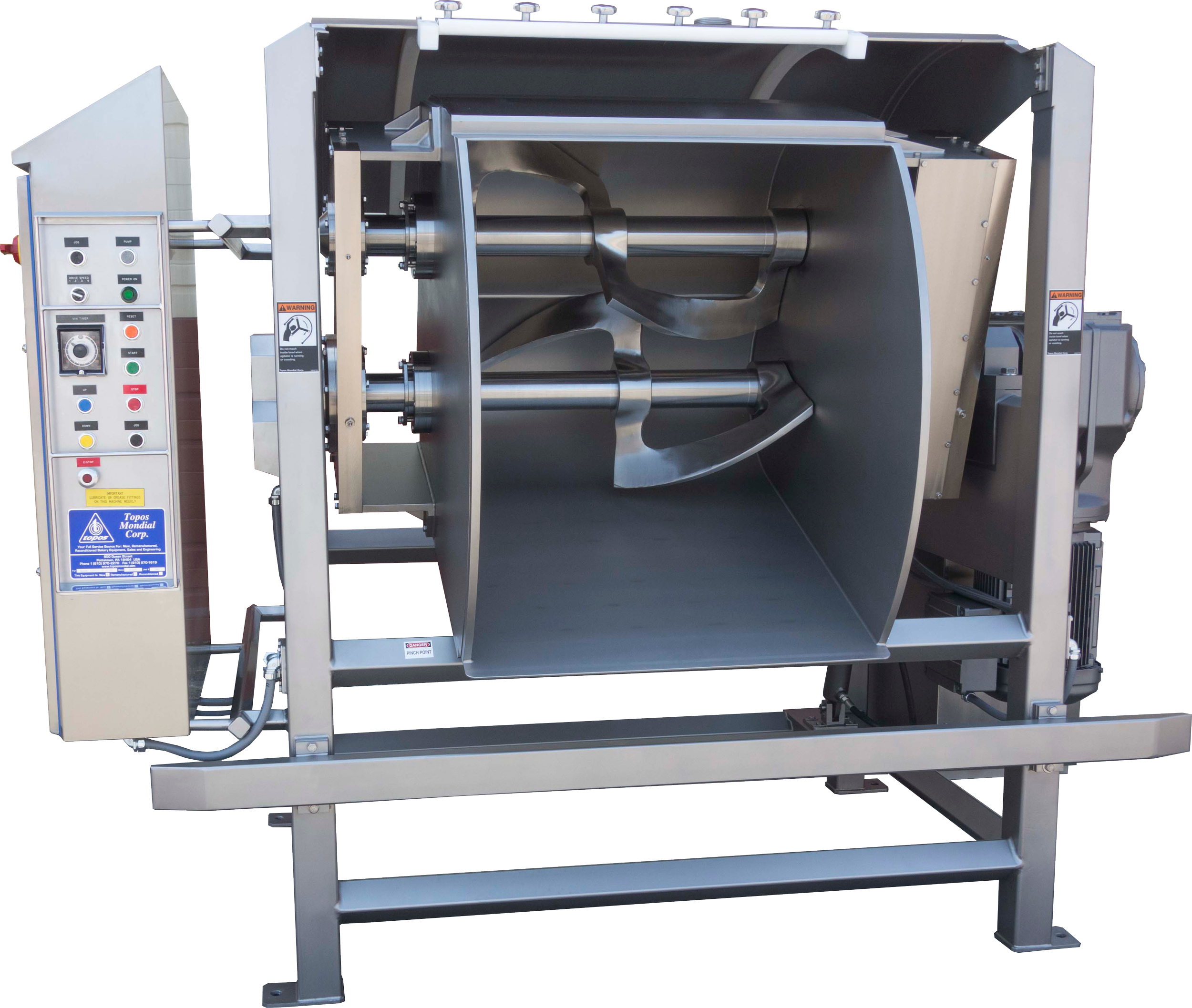

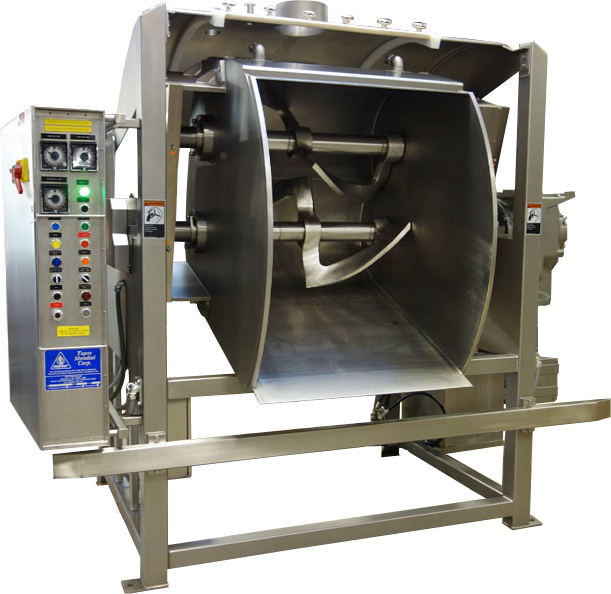

Topos Mondial, Open Frame Double Sigma Horizontal Mixer
| Feature | Details |
|---|---|
| Model Name | Open Frame Double Sigma Horizontal Mixer (DSOFHM) |
| Design | Sanitary open frame with 110° over-tilt bowl |
| Agitator Type | Double sigma agitator design for heavy dough handling |
| Bowl & Material | Reinforced stainless steel bowl, canopy, main shaft & agitators |
| Frame Options | Mild steel with STEEL IT coating or full stainless steel |
| Controls | Custom controls with timers/relay logic or PLC + HMI options |
| Hydraulic Tilt | Heavy-duty Hytos hydraulic tilt package under stainless cover |
| Sanitation | Open frame sanitary design for fast & easy cleaning |
| Mixing Models |
THM-50OT: 450 lbs / 50 gal / 8–70 rpm / 13 hp THM-80OT: 700 lbs / 80 gal / 7–60 rpm / 13 hp THM-100OT: 900 lbs /100 gal / 7–60 rpm / 20 hp THM-150OT:1100 lbs /150 gal / 7–60 rpm / 38 hp THM-200OT:1400 lbs /200 gal / 7–60 rpm / 38 hp THM-250OT:1700 lbs /250 gal / 7–60 rpm / 46 hp THM-350OT:2350 lbs /300 gal / 7–60 rpm / 74 hp |
| Made To Order | Yes — customized builds per specification |
Typical Applications
High-Absorption Bread Dough
Pizza Dough
Bagel Dough
Pretzel Dough
English Muffins
Tortillas
Flatbreads
Available Options (Net Additional)
Insulated Bowl Jacket
Helps control dough temperature with stainless cover protection.
Custom Controls
Design panels from basic timers to advanced PLC touch screens.
Front Pouring Lips
Fabricated lips for precise, clean dough transfer.
Ingredient Feed Ports
Slide gate or butterfly dry and liquid feed ports.
VFD Drive Controls
Variable frequency drive for soft starts and speed flexibility.
