Topos Mondial, Double Spiral Mixer


      Feature
      Details

      Model Name

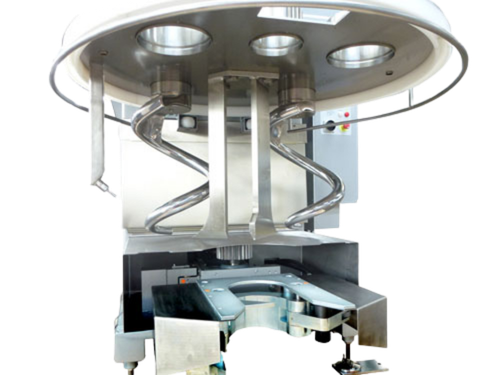

      Removable Bowl Double Spiral Mixer (T-300 DS)

      Dough Capacity
      660 lbs (based on 62 % absorption)

      Bowl Volume
      660 qts

      Agitator Rotation
      101 / 202 rpm

      Total Power
      47.3 hp

      Drive System
      Heavy-duty two-speed motor with Kevlar-reinforced timing belts and oversized bearing support assemblies

      Construction
      All product contact zones in stainless steel with reinforced double spiral agitators and dual stripper bars

      Controls
      Allen-Bradley PLC with PanelView for pre-programmed recipes and operator control

      Sanitation
      Six stainless leveling legs for easy wash-down cleaning underneath unit

      Bowl Cover
      Stainless steel cover with dry/liquid ingredient connections and safety interlocks

      Made to Order
      Yes — customizable build per specification

Typical Applications

    Artisan Bread
    Pan Bread
    Buns & Rolls

    Pizza Dough

    Bagels
    Frozen Dough

    Sweet Dough

Download Brochure (PDF)

Available Options (Net Additional)

Bulk Ingredient Metering

Automated liquid metering tied to PLC recipes.

Implement Carts

Mobile carts for storing and switching mixer tools.

Swing-Away Catch Pan

Catches drips and keeps floors clean during operation.

Hydraulic/Water Bowl Tilter

Ergonomic bowl tilting options for discharge and cleaning.
