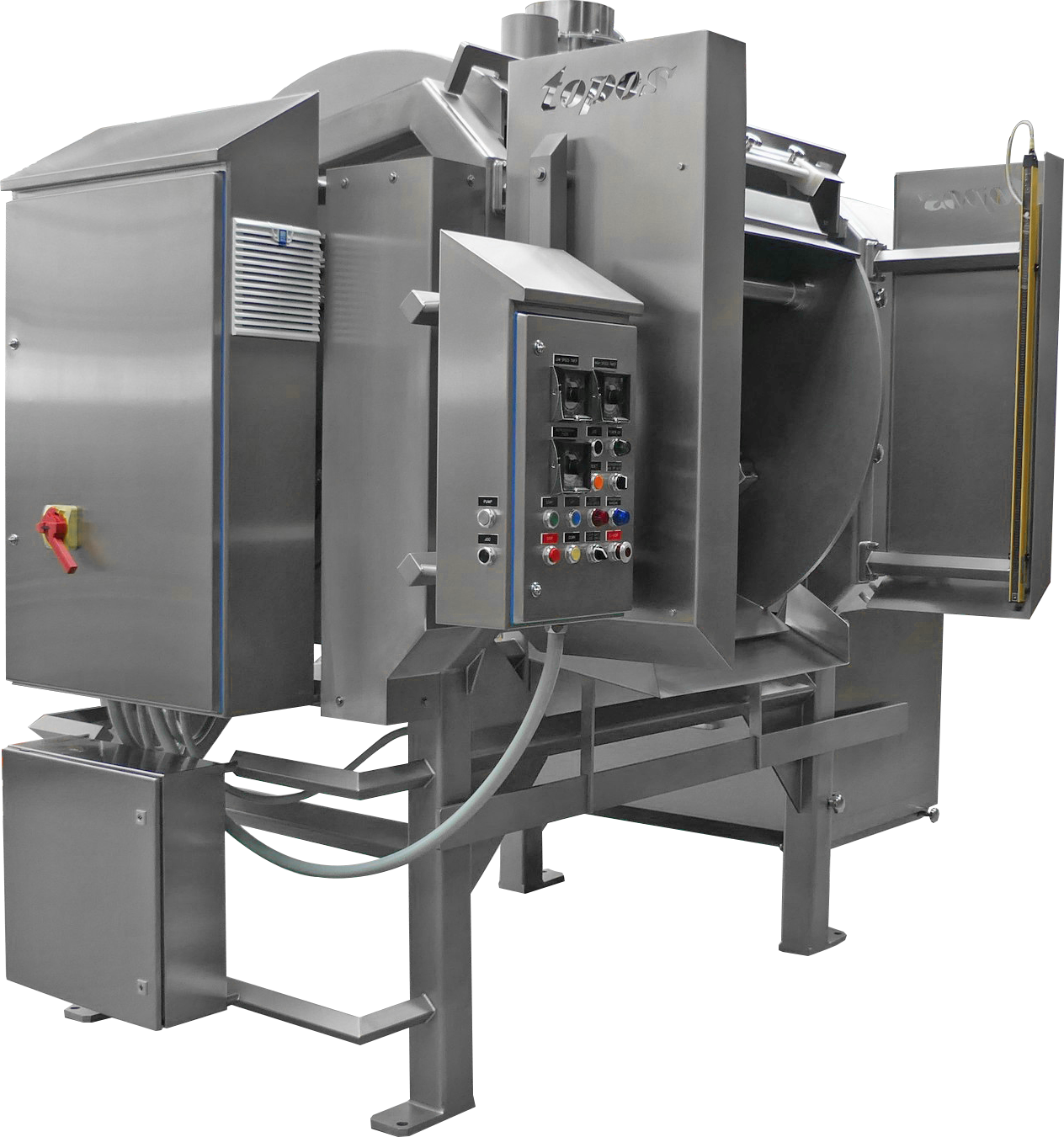

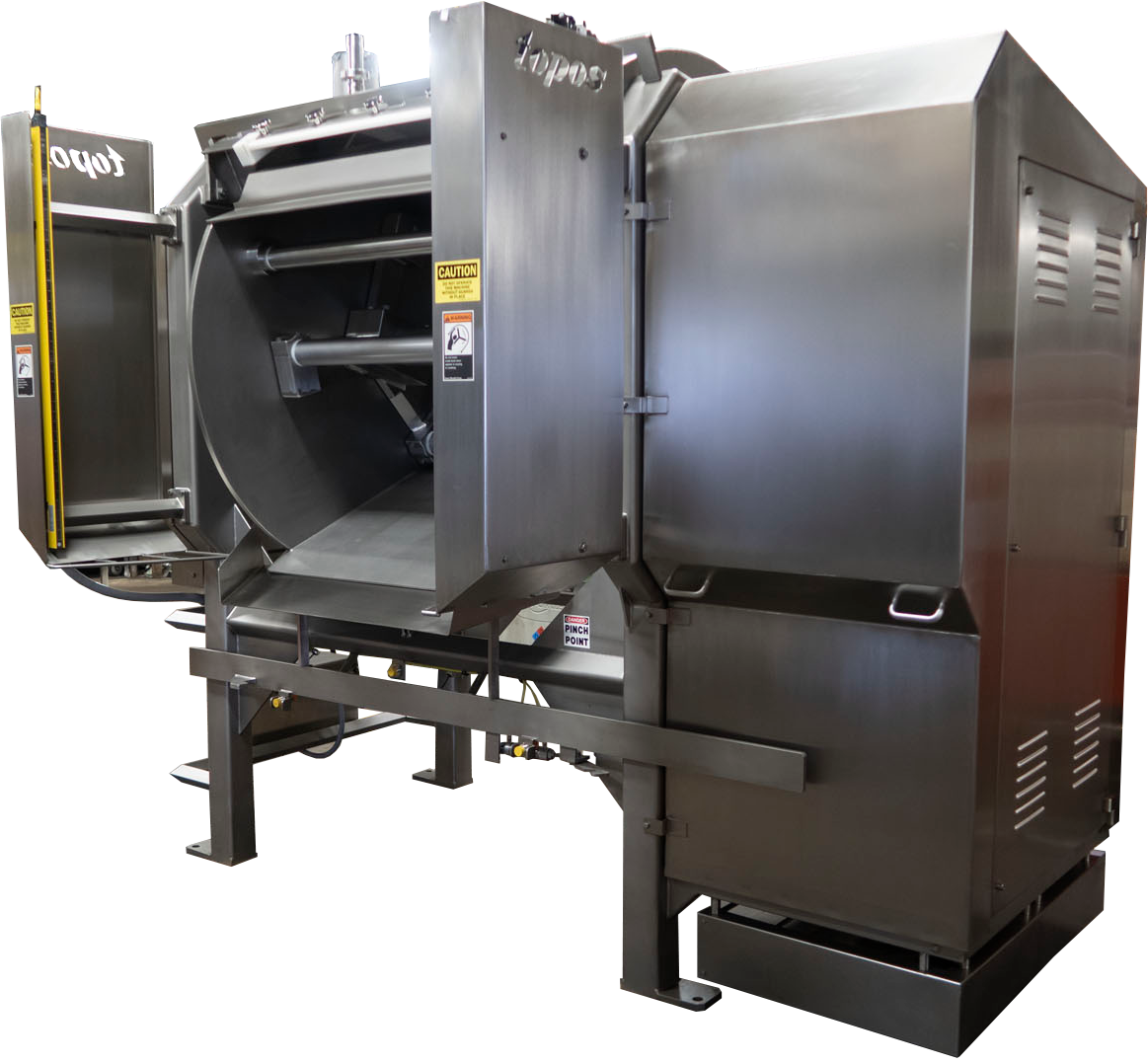

Open Frame Three Roller Bar Horizontal Mixer
Open Frame Three Roller Bar Horizontal Mixer — Specifications
| Feature | Details |
|---|---|
| Model Name | Open Frame Three Roller Bar Horizontal Mixer (THM-OT) |
| Design | Sanitary open frame, heavy-duty horizontal mixer |
| Construction | Stainless steel bowl, frame, canopy, and components |
| Mixing System | Three roller bars with adjustable positioning and UHMW blocks |
| Bowl Tilt | Hydraulic over-tilt bowl (hand pump standard) |
| Sanitary Access | Tool-free removable seals and clean-in-place design |
| Available Capacities |
800 lbs / 40 cu ft / 40 hp 1,000 lbs / 37.6 cu ft / 50 hp 1,200 lbs / 43.2 cu ft / 60 hp 1,400 lbs / 50 cu ft / 75 hp 1,600 lbs / 54 cu ft / 100 hp 2,000 lbs / 75.2 cu ft / 125 hp |
| Made to Order | Yes — configurations available per specification |
*Capacities and drive power vary by model and configuration.
Typical Applications
Bagels
Hard Rolls
English Muffins
Pizza Dough
Tortillas
Frozen Dough
Pretzels
Sweet Goods
Available Options (Net Additional)
Insulated Bowl Jacket
Provides temperature control with full stainless cover — ideal for heat-sensitive doughs.
Custom Mixer Control Station
Operator stations tailored to your process — from simple button controls to PLC/HMI touch screens.
Front Bowl Edge Pouring Lips
Fabricated lips in various lengths/angles to optimize dough discharge and transfer.
Bulk Dry Ingredient Openings
Slide gate or butterfly-style openings for efficient large dry ingredient feed.
Manual Ingredient Inlets
Custom openings for manual ingredient feed to match specialty mixes.
Liquid Ingredient Inlets
Added liquid inlet ports for workflows requiring precise wet ingredient additions.
