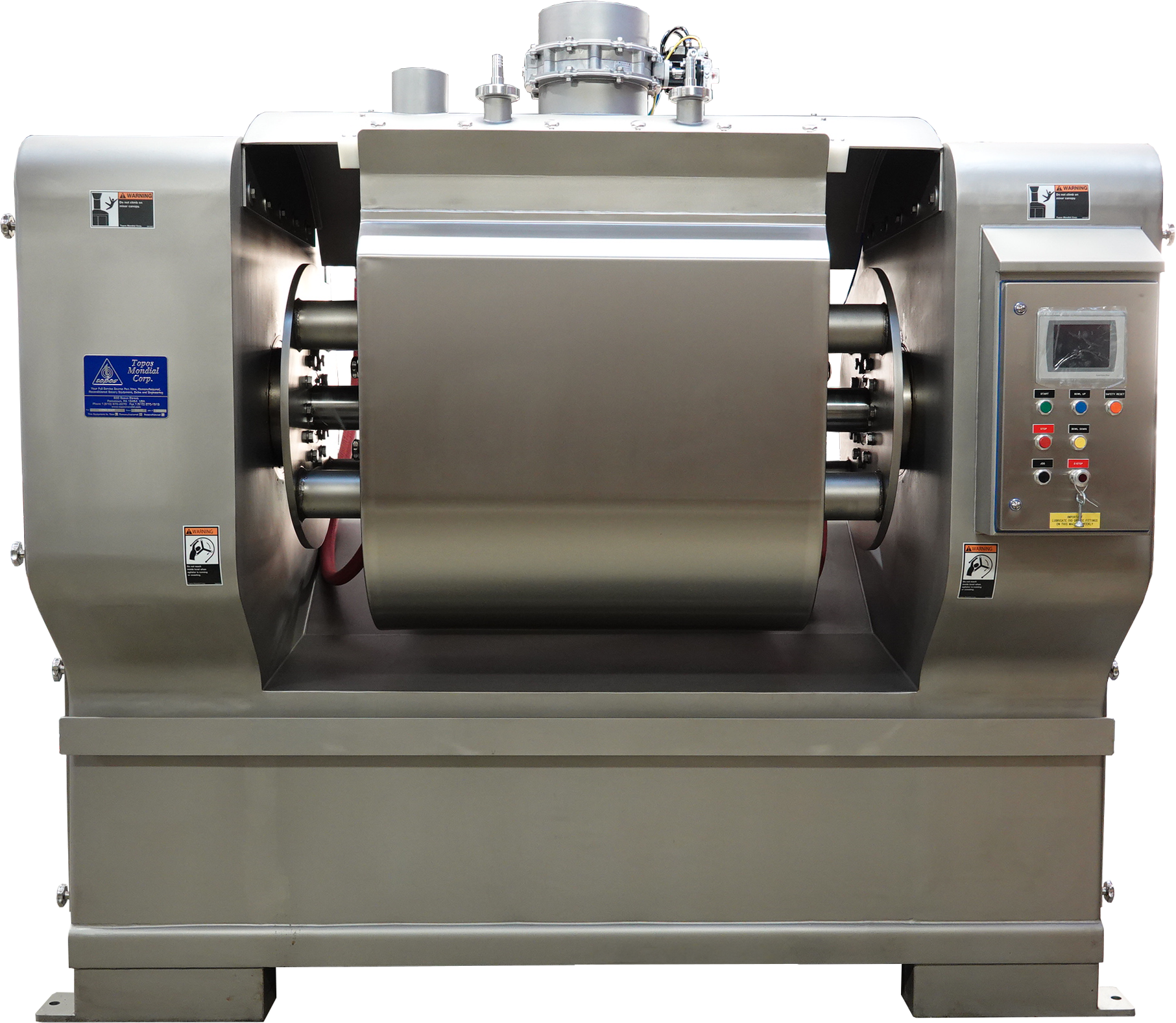

Topos Mondial, Closed Frame Three Roller Bar Horizontal Mixer
| Feature | Details |
|---|---|
| Model Name | THM-OT Three Roller Bar Horizontal Mixer |
| Design | Closed frame, heavy-duty horizontal mixer with sanitary design and easy cleaning access |
| Construction | 100% stainless steel bowl, frame, canopy, and components — no gearbox or oil to maintain |

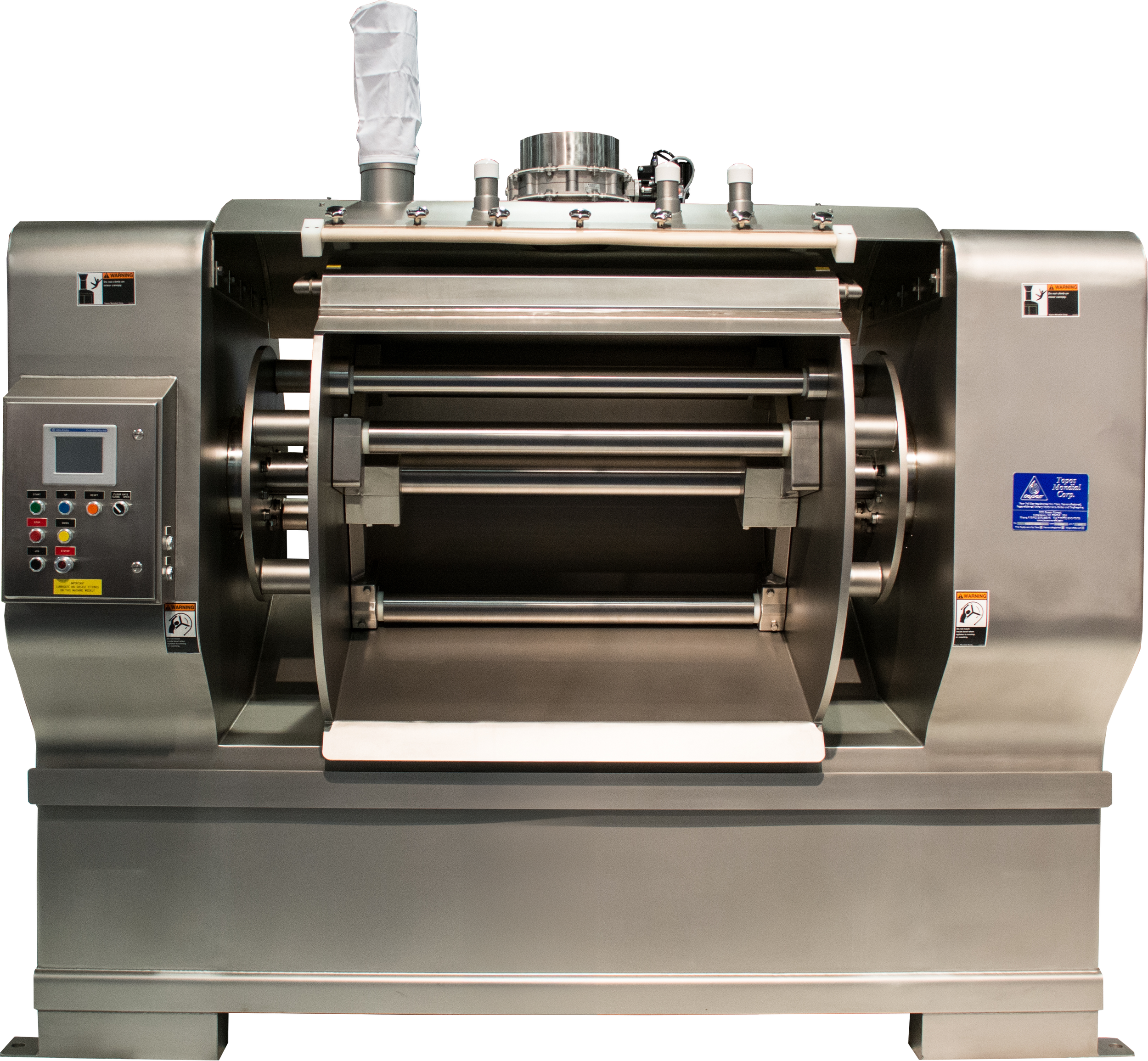

| Mixing System | Three roller bars with adjustable positioning and eight UHMW adjustment blocks for optimal kneading performance |
| Hydraulic Tilt | Hydraulic over-tilt bowl with hand pump included (standard) |
| Standard Features | Sanitary seals removable without tools, premium Kevlar timing belts, easy access sanitary design |
| Made to Order | Yes — custom configurations available |
| Typical Models & Capacities |
THM-08OT: 800 lbs / 27 cu ft / 40 hp THM-10OT: 1,000 lbs / 37.6 cu ft / 50 hp THM-12OT: 1,200 lbs / 43.2 cu ft / 60 hp THM-14OT: 1,400 lbs / 50 cu ft / 75 hp THM-16OT: 1,600 lbs / 54 cu ft / 100 hp THM-20OT: 2,000 lbs / 75.2 cu ft / 125 hp |
Typical Applications
Bagels
Pretzels
Hard Rolls
Pizza Dough
Tortillas
English Muffins
Frozen Dough
Available Options (Net Additional)
Insulated Bowl Jacket
Temperature control for heat-sensitive doughs.
Custom Controls
PLC, timers, or HMI touch configurations available.
Front Pouring Lips
Optimized discharge edge for efficient transfer.
Ingredient Feed Ports
Dry or liquid ingredient feed openings available.
