Glimek, Suction Dough Divider (SD)

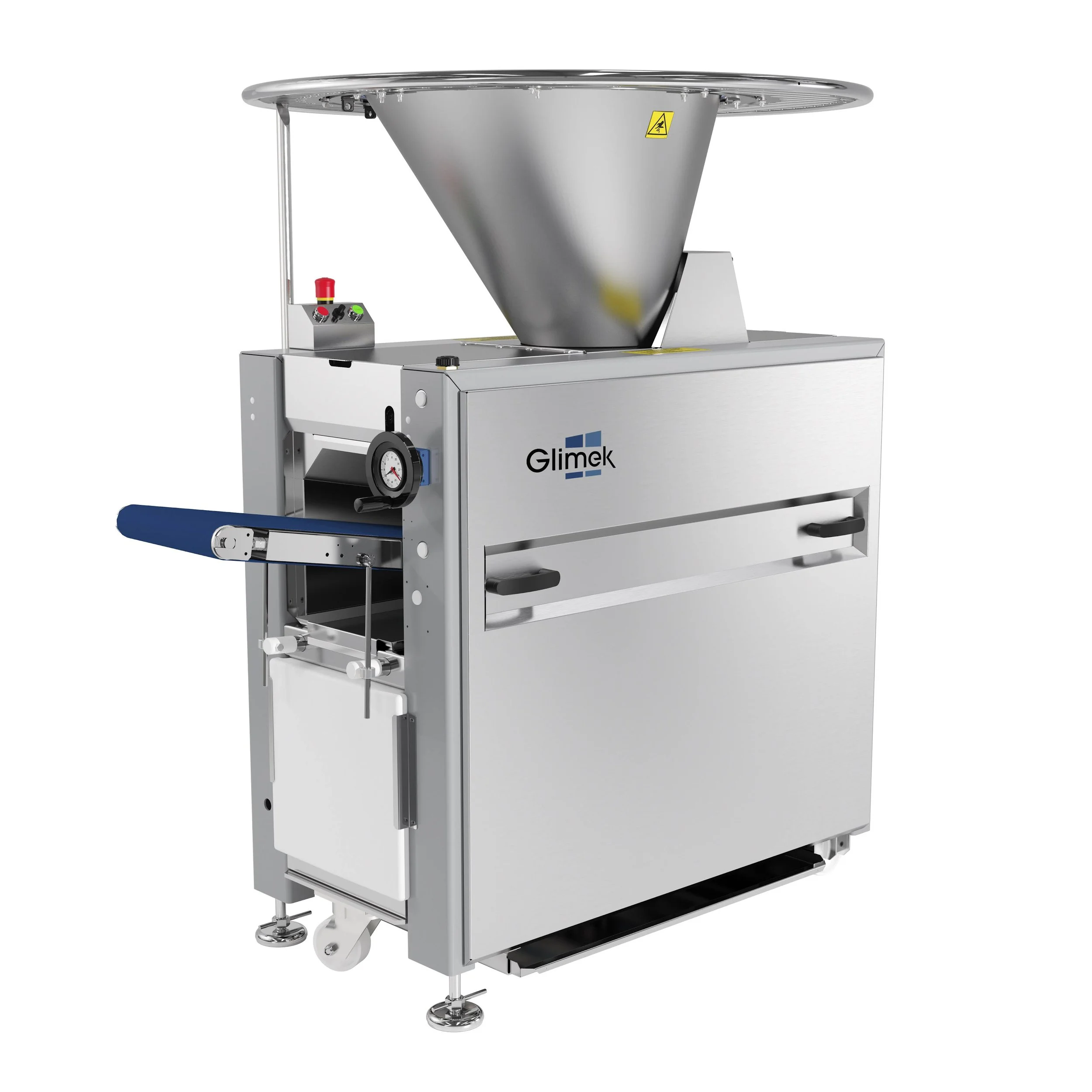

  • SD180

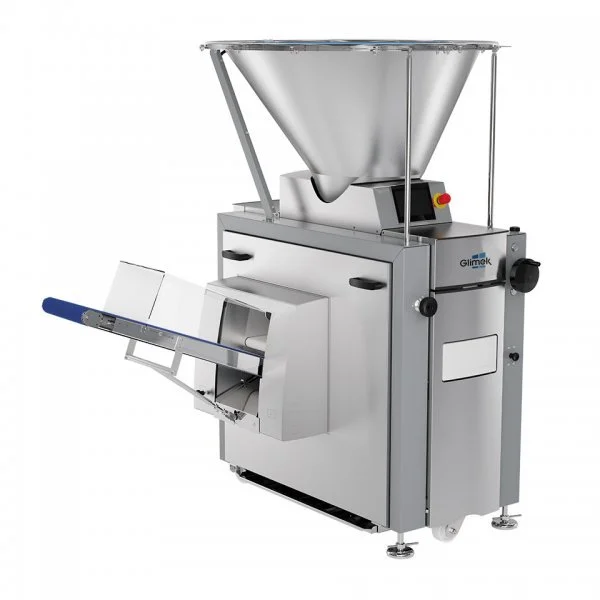

  • SD300

  • SD600

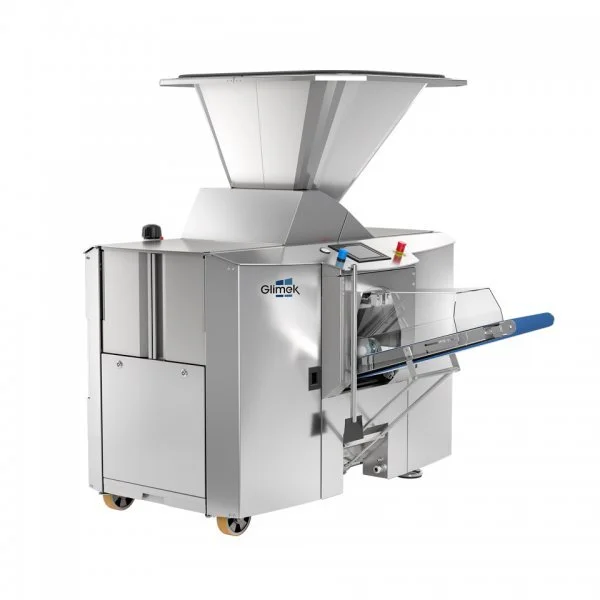

    SD600

Feature SD180 SD300 SD600
Production Capacity* Up to 1,800 pcs/hr Up to 3,000 pcs/hr Up to 6,000 pcs/hr
Weight Range* Approx. 35–2,300 g Approx. 40–2,300 g Approx. 100–1,700 g
Divider System Single-pocket suction dividing 1- or 2-pocket suction system High-capacity industrial suction system
Standard Hopper 90 L 90 L 100 L
Large Hopper Option 225 L 225 L Up to 225 L+
Control System Electromechanical or touch screen PLC with touch screen Industrial PLC control
Power ~1.1 kW ~1.5 kW Industrial configuration
Voltage 3-phase, 400 V, 50 Hz* 3-phase, 400 V, 50 Hz* 3-phase industrial supply*

*Capacity, weight, and electrical specs may vary depending on dough type and configuration.

Download Brochure (PDF)
Download Brochure (PDF)

Available Options (Net Additional)

    • Stainless Steel Frame.

    • Lower capacities.

    • Variable speed 500-1000 dough-pieces per hour.

    • Variable speed 500-1200 dough-pieces per hour.

    • 90 liter non-stick coated hopper (teflon coating).

    • 225 liter extra large hopper in stainless steel.

    • 225 liter extra large hopper non-stick coated.

    • Hopper lubrication – automatic lubrication inside 225 liter hopper.

    • Separate unit with control box, pump unit and built-in oil container.

    • Special length on outfeed conveyor.

    • Special belt on outfeed conveyor.

    • Oiling of outfeed conveyor belt.

    • Oiling of Measuring Piston.

    • Oiling of Measuring Piston and belt.

    • Flour duster – mechanical SD180.

    • Electrical outlet – powered when the divider is running.

    • Mini piston and adapter for dough weight 35-250 g:

    • For SD180.

    • For SD180XL.

    • (not available with SD180XS)

    • Dough limit handle.

    • Touch screen control panel incl. piece counter and

    • Weight range reading.

    • Height extension 100 mm, stainless steel.

    • 90 liter non-stick coated hopper (teflon coating).

    • 225 liter extra large hopper in stainless steel.

    • 225 liter extra large hopper non-stick coated.

    • Hopper lubrication – automatic lubrication inside 225 liter hopper.

    • Separate unit with control box, pump unit and built-in oil container.

    • Flour duster – mechanical SD300

    • (Not in combination with ‘Oiling of first conveyor belt‘).

    • Non-stick coated dough scraper – for very soft or sticky dough’s.

    • Oiling of first conveyor belt (not in combination with ‘Flour duster’).

    • Oiling of Measuring Piston.

    • Oiling of Measuring Piston and first conveyor belt

    • (Not in combination with ‘Flour duster’).

    • Height extension 100 mm, stainless steel.

    • Special belt on one or both conveyors.

    • Special length on outfeed conveyor

    • Control System Allen Bradley.

    • 100 liter non-stick coated hopper (teflon coating).

    • 225 liter extra large hopper in stainless steel.

    • 225 liter extra large hopper non-stick coated.

    • Hopper lubrication – automatic lubrication inside.

    • the 225 liter hopper.

    • Separate unit with control box, pump unit and built-in oil container.

    • Flour duster – mechanical.

    • Oiling of first conveyor belt.

    • Special belt on one or both conveyors.

    • Special length on outfeed conveyor.
