Glimek, Dough Moulder, MO

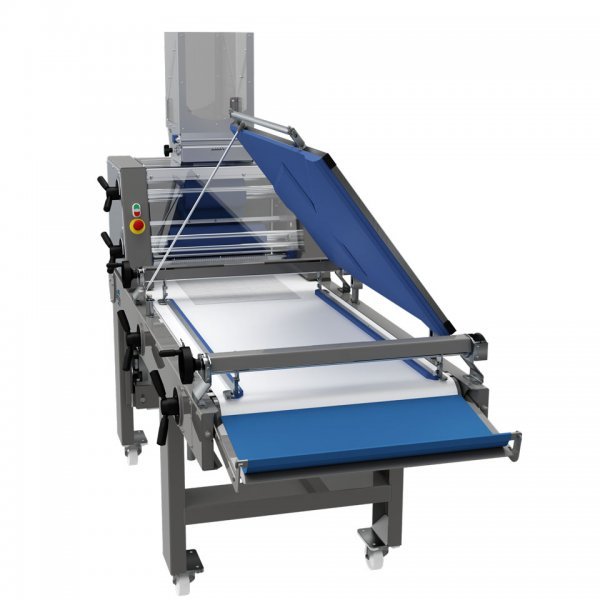

  • MO300

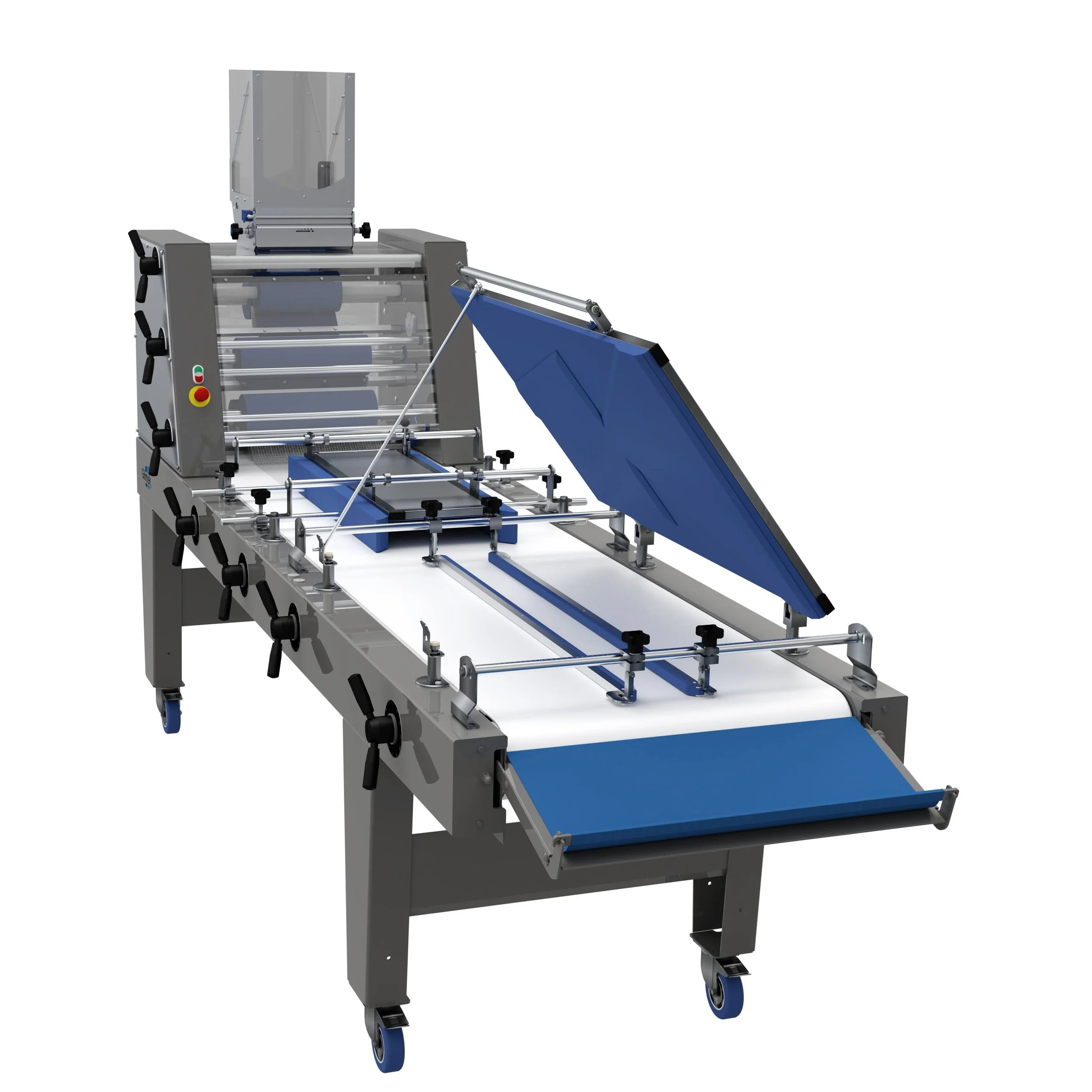

  • MO881

  • MO221

Feature MO300 Moulder MO881 Heavy-Duty Moulder MO211 Moulder Extension
Function Standard moulding of loaves, baguettes, buns, and pizza dough Heavy-duty industrial moulding with seamless shaping Reverse moulding extension for improved final shape and straight seams
Capacity Up to 3,000 pieces/hour* Up to 3,600 pieces/hour* Up to 3,600 pieces/hour*
Weight Range 30–1,800 g* 30–1,800 g* 30–1,800 g*
Best For Retail and semi-industrial bakeries needing flexibility Industrial bakeries needing higher output and seamless moulding Bakeries wanting perfectly straight, evenly moulded long products
Moulding System Dual V-shaped pressure board with adjustable rollers Triple moulding head with curling net and dual pressure boards Additional reverse moulding unit with motorized pressure board
Pressure Boards Single foldable pressure board Two pressure boards (one foldable for cleaning) Motorized top pressure board with fixed lower counter-rotation surface
Product Shape Benefit Consistent moulding for a wide range of products Seamless products and improved industrial consistency Eliminates “banana-shaped” loaves and creates straight seams
Working Width Up to 650 mm Up to 650 mm Matches MO881 working width
Construction Stainless steel frame Heavy-duty stainless steel frame Stainless steel construction (integrated or standalone frame)
Mobility Movable Movable with stainless steel castors Available integrated with MO881 or as standalone on wheeled frame
Power Supply 1.1 kW (1.65 kW with motorized board option) 1.1 kW (1.65 kW with motorized board option) 0.55 kW
Recommended Fuse 16 A 16 A 16 A

*Capacity and weight range depend on dough characteristics and setup.

Download Brochure (PDF)
Download Brochure (PDF)

Available Options (Net Additional)

    • Height extension 100 mm.

    • (Standard is 590 mm plus wheels 140 mm.)

    • Leaning hopper for better side access to infeed (left or right, must

    • be indicated upon order).

    • Infeed Conveyor - Enables, among other things, use together with

    • Intermediate Pocket Proofer - low version.

    • Lower side guides – 10 mm, non-stick coated.

    • Motorized pressure board – capacity 1800 pcs/h.

    • Counter rotating with fixed speed. (Affects power supply,

    • plus 0.55 kW, totally 1.65 kW.)

    • Parallel adjustable side guides:

    • 20 mm in food approved plastic.

    • 10 mm non-stick coated.

    • Three fixed knives mounted through the pressure board for 4-pieces (distance to be stated).

    • Three adjustable knives under pressure board.

    • Stainless Steel Frame

    • Decoration unit between pressure boards.

    • Photocell controlled, incl. vibrator and turnable suspension.

    • Flour duster between pressure boards or on top of motorized pressure board.

    • Three knives mounted through the pressure board for 4-pieces (distance to be stated).

    • Three knives in pressure board for 4-pieces* including forming and feeding station into tin sets (straps).

    • Three adjustable knives under pressure board.

    • Stainless Steel Frame.

    • Height extension** (standard is 580 plus wheels 155 mm.)

    • Infeed timing conveyor, coming from behind, including special safety cover adjusts the distance between dough pieces coming too close.

    • Infeed Conveyor - Enables, among other things, use together with Intermediate Pocket Proofer - low version.

    • Extra first pressure board, available widths: 120, 180, 220, 400 mm.

    • Lower side guides – 10 mm non-stick coated.

    • Motorized secondary pressure board, counter rotating with variable speed. Includes start-stop unit :

    • (Affects power supply, plus 0.55 kW, totally 1.65 kW).

    • Parallel adjustable side guides:

    • 20 mm in food approved plastic.

    • 10 mm non-stick coated.

    • Adjustable stop plate – replacing standard tray when feeding into tin sets (straps) on underlying tin conveyor.

    • Underlying conveyor for tin sets (straps) in stainless steel L = 4500 mm.

    • This tin set (strap) conveyor is intended for manual loading and unloading of this sets (straps) and includes centrally adjustable side guides (width of straps within 250-500 mm, one pneumatic tin stop

    • 14x100 mm working from underneath and one sensor for infeed.

    • Price is only valid for tin set (strap) approved by Sveba Dahlen. For other executions, please send request.

    Distance to be stated.

    Height must be specified.

    • MO211: Stainless steel, assembled on stainless steel MO881.

    • Stainless steel, assembled on movable lower frame with wheels.
