Glimek, Cup Elevator, CE

  • CE100

  • CE300

  • CE500

Feature CE100 CE300 CE500
Function Gentle transfer of dough pieces between line machines Gentle elevation and spacing of dough pieces High-capacity dough piece elevation for industrial lines
Capacity* Matches divider/rounder line output Designed for medium to high-speed production lines Designed for continuous high-output production
Handling Soft cup transport to preserve dough structure Gentle cup handling maintains dough shape Smooth, controlled transfer for sensitive doughs
Construction Stainless steel hygienic frame Heavy-duty stainless steel construction Industrial stainless steel frame
Integration Custom heights and discharge positions available Flexible infeed/outfeed positioning Engineered for long elevation heights and line integration
Control Synchronized with upstream/downstream equipment Variable speed, line-synchronized Full line synchronization with industrial controls
Power Approx. 0.55 kW Approx. 0.75 kW Approx. 1.1 kW
Voltage 3-phase, voltage per installation country 3-phase, installation specific 3-phase industrial supply

*Capacity depends on upstream machine output, product size, and spacing configuration.

Download Brochure (PDF)
Download Brochure (PDF)

Available Options (Net Additional)

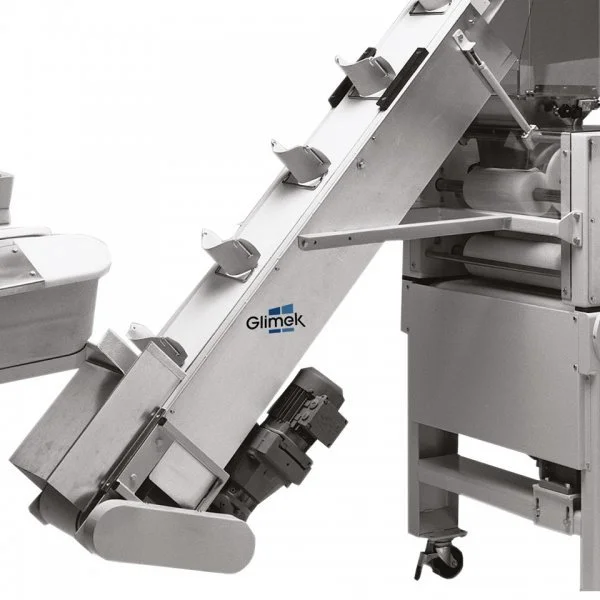

    • Step-by-step stainless steel cup elevator for transporting dough pieces from the rounder to the moulder.

    • Photocell-controlled feeding for precise timing.

    • Capacity: up to 2,000 pieces/hour.

    • Weight range: ~100–1,500 g.

    • Durable, easy-to-clean design.

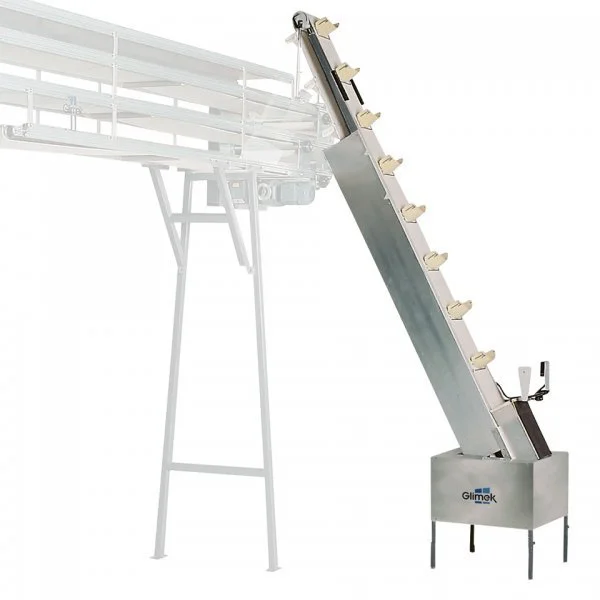

    • Robust step-by-step elevator for transporting dough pieces from the rounder to the intermediate conveyor proofer.

    • Photocell-controlled dough feeding system.

    • Capacity: up to 2,000 pieces/hour.

    • Weight range: ~100–1,500 g.

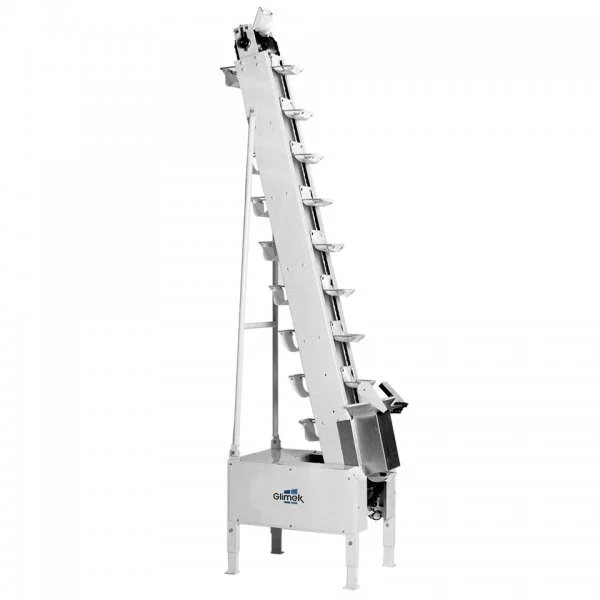

    • Vertical chain cup elevator for transporting dough pieces from the rounder to the intermediate conveyor proofer.

    • Photocell-controlled timing for consistent production.

    • Capacity: up to 3,600 pieces/hour.

    • Weight range: ~100–1,800 g.

    • Optional additional distributing height available.
